+6-
Sleeps 4
-
3 Slides
-
Rear Living AreaKitchen Island
-
41ft Long
-
13,400 lbs

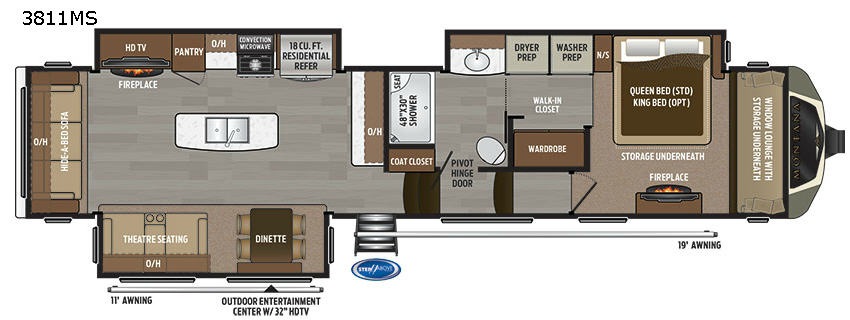

3811 MS Floorplan
Specifications
| Sleeps | 4 | Slides | 3 |
| Length | 40 ft 9 in | Ext Width | 8 ft |
| Ext Height | 13 ft 5 in | Hitch Weight | 2705 lbs |
| Dry Weight | 13400 lbs | Cargo Capacity | 3305 lbs |
| Fresh Water Capacity | 66 gals | Grey Water Capacity | 88 gals |
| Black Water Capacity | 49 gals | Tire Size | ST235/80R16G |
| Furnace BTU | 35000 btu | Available Beds | Queen |
| Refrigerator Type | Residential French Door with Ice Maker | Refrigerator Size | 18 cu ft |
| Convection Cooking | Yes | Cooktop Burners | 3 |
| Shower Size | 48" x 30" | Number of Awnings | 2 |
| Axle Weight | 14000 lbs | LP Tank Capacity | 60 |
| Water Heater Capacity | 12 gal | Water Heater Type | DSI Gas/Electric |
| AC BTU | 30000 btu | TV Info | Living Room 48" LED TV, Bedroom 32" LED TV, Outside 32" HD TV |
| Awning Info | 11', 19' Electric | Axle Count | 2 |
| Washer/Dryer Available | Yes | Number of LP Tanks | 2 |
| Shower Type | Shower w/Seat | VIN | 4YDF38122H4702404 |
Description
You are going to love the master suite in this Keystone Montana fifth wheel model 3811MS! With triple slides, two fireplaces, and all of the necessities, this can truly be your luxury home-away-from-home!
Step inside and take a look around. To your left you will find a spacious and inviting living area and kitchen combined. There is a dinette with four chairs and theater seating to the left of the entry door. Along the rear wall you will find more seating with a hide-a-bed sofa in this space. There is overhead cabinetry the entire width of the unit, and a 48" HDTV with fireplace adjacent in the end of the kitchen slide out found along the road side.
When it comes to meal time you will easily be able to whip up something fresh that your family enjoys. You will have a three burner range with convection microwave oven overhead to do any of the cooking you like. For food storage there is a pantry for dry and canned goods, plus a residential 18 cu. ft. refrigerator for your perishables. There is also ample counter space and storage with the island in the center featuring double sinks for cleaning up, and along the interior wall you will find more counter space with storage overhead for your daily dishes and things.
Head up the steps to the master bedroom and bath suite. Through the pivot hinged door on your left enter the bathroom where you will find a 48" x 30" shower, a toilet, and sink including overhead storage found in the beginning of the road side master suite slide. Next, there is a walk in closet that has been prepped for a washer/dryer, so you can add the convenience of on board laundry if you wish. There is also a wardrobe along the interior portion of the closet for your things.
In the bedroom area the slide continues and features a nightstand and queen or optional king size bed. The front offers a window area lounge space with storage beneath which makes a good place to read or just relax and have some quiet time in your day. Opposite the bed you will find a second fireplace making this a cozy retreat.
Outside you will find an outdoor entertainment center with a 32" HDTV, and two awnings, plus storage, and so much more! You can choose this same layout with an 18 cu. ft. RV refrigerator if you like by selecting model 3810MS.
Features
Standard Features (2017)
Living Area
- Glazed zinfandel cherry cabinetry
- Solid hardwood slide out fascia
- Roller shades
- Front to rear interior vaulted ceiling
- Tri-fold hide-a-bed sofa
- Hidden cabinet hinges
- 6’ 6” Tall main slide-outs
- Flush Mounted LED Interior Lights
- Ceiling Fan with Light Kit
- Ceiling crown molding with LED Lighting
Kitchen
- Stainless steel kitchen sink
- Solid surface flush mount sink covers
- 30” over-the-range convection/microwave oven
- Power vent fan with rain sensor in kitchen
- Full extension drawer guides
- Pull out kitchen trash can (Most models)
- Solid surface kitchen counter-tops
- Hi arch kitchen faucet with integrated pull down sprayer
- Sink cover storage below kitchen sink
- 18 Cubic foot 4 door RV refrigerator (3000, 3160, 3660, 3720, 3730, 3790, 3810, 3820, 3910, 3950)
- Residential french door refrigerator w/ ice maker and 1000 watt inverter (3661, 3721, 3731, 3791, 3811, 3911)
- Wall mounted free standing dinette with (2) fixed and (2) folding chairs (Optional 3820)
- Central vacuum with interior and exterior ports plus toe kick sweep
Home Entertainment
- RG-6 satellite prep
- 48” HD LED TV in living area
- DVD/CD/MP3 entertainment system with bluetooth
- Winegard Rayzar Z-1 HD digital TV antenna
- 32” HD LED TV in bedroom
- Marine grade exterior speakers
Bedroom
- 60” x 80” Queen Bed
- iRelax high density mattress
- (2) Bedside electrical outlets
- Bedside night stands
- Reading lights over bed
- Prepped for combo OR 2 piece washer/dryer with separate 20amp circuits for each appliance
- Quilted headboard
- Massive storage under bed
Bathroom
- Seamless 48” x 30” fiberglass shower
- Porcelain foot flush toilet
- Solid surface bathroom vanity
- Wire & frame for 3rd A/C
- 75amp Converter
- Sky light over shower
- 12 gallon DSI gas/electric water heater
- 30,000 BTU dual whisper quiet A/C system with heat pump
- 50amp Service
Construction
- 5” Arched fiberglass composite roof rafters
- Laminated sidewalls with dual layered luan and metal backing strips to anchor interior cabinets
- Powder coated 12” steel I-beam frame
- (R-38 Equivalent) Radiant technology insulated roof
- (R-11) Insulated sidewalls
- Insulated and heated holding tanks and dump valves
- Insulated in-floor water lines
- 35,000 BTU furnace
- Welded aluminum framed walls and floors
- Seamless 5/8” thick Dynaspan® floor decking
- Tested and approved for 0 degree usage since 2005
- (R-21) Insulated main floor
- (R-15) Insulated slideout floors
- Vented attic
- Enclosed and heated low point drains
- 12v electric tank heaters
- 3” x 14” Residential in-floor straight line heat duct system
- 5100 BTU electric fireplace
Towing
- Max Turn front cap and radius frame with Hitch Vision™
- Prepped for rear view camera
- G-range tires
- 16” 8-Lug Aluminum wheels
- Back-up lights
- Undermount spare tire and carrier
- MORryde pin box
- MORryde CRE 3000 suspension
- Heavy duty wet bolt kit with bronze bushings and 1/2” shackle links
- 7000 lb Dexter E-Z lube axles with self adjusting brakes
Exterior Features
- High gloss gel coated sidewalls and rear wall
- Extra large (30” wide by 78” tall) entry door with friction hinge and integrated window shade
- Rear roof ladder
- Slam latch pass thru storage compartment doors
- 12v electric patio awning with LED lights
- Patio security light
- Automotive paint with 2 layers of clear coat on front cap
- Automotive frameless safety glass windows
- Fold away entry handle
- Enormous drop frame pass thru storage compartment
- MORryde “Step Above” entry steps
- 2nd 12v electric patio awning w/LED lights on slide-out (3000, 3160, 3720, 3721, 3810, 3811, 3910, 3911, 3950)
- Heated central exterior water and convenience center
Four Season Living Package (Mandatory)
- Insulated and Enclosed Underbelly
- (R-21) Insulated Main Floor
- (R-11) Insulated Double Layer Supported Fiberglass Sidewalls
- Fully Vented Attic
- 12v Electric Tank Heaters
- (R-15) Insulated Slideout Floors
- (R-38 Equivalent) Radiant Technology Insulated Roof
- Heated Pass Through Convenience Center
Montana Legacy Edition (Optional)
- Decorative fiberglass rear cap
- Exclusive MOR/Ryde LRE 4100 Suspension
- Hardwood Cherry Cabinet Framing (stiles)
- iN-Command Control System
- Upgrade day/night roller shades
- Rear accessory hitch
Residential Living Package (Mandatory)
- Best in Class MOR/Ryde Hitch Pin
- Wireless Back-up Camera with in Vehicle Mobile Display
- Free Standing Dinette with (2) Fixed and (2) Folding Chairs
- 6’6” Extra Tall Main Slideout Heights
- Upgrade Solid Surface Kitchen and Bathroom Countertops with Range and Sink Covers
- 30” OTR Convection Microwave
- French Door Residential Refrigerator w/ ice maker
- Central Vacuum with Interior and Exterior Ports and Toe Kick Sweep Convenience
- Patented ‘Max Turn” Front Cap with Hitch Vision and LED Profile Lighting
- MOR/Ryde CRE 3000 Suspension System
- Slam Latch Pass Through Storage Compartment Doors
- Front to Rear Interior Vaulted Ceiling
- Washer and Dryer Prep
- LED Interior Lighting
- Glazed Hardwood Cherry Cabinet doors and Drawers
- RV Four Door Refrigerator
- Power Vent Fan in Kitchen
Legacy Edition Package (Optional)
- Shoreline® Low Profile Power Cord Reel (N/A 3000RE)
- Wireless Rear View Camera with in Vehicle Mobile Display
- Keystone In-Command Control System
- Rear Accessory Hitch
- Solid Hardwood Residential Cherry Cabinet Framing
- Rear fiberglass cap with automotive paint and 2 layers of clear coat (N/A 3790, 3791)
- MORryde LRE 4100 suspension
- Day and night roller shades in living area (night roller shades in bedroom and hallway)
Options
- King Bed
- Residential French door refrigerator with ice maker and 1000 watt inverter (3661, 3721, 3731, 3791, 3811, 3911)
- 5100 BTU electric fireplace (Mandatory option)
- Power vent fan with rain sensor in bathroom
- Power vent fan with rain sensor in toilet room (3910 or 3911 only)
- Hi back desk chair with step ladder (3950 only)
- Theater seating in place of recliners (3000, 3160, 3720, 3721, 3810, 3811, 3910, 3911, 3950)
- Wall mounted free standing dinette with (2) fixed and (2) folding chairs in place of booth dinette (3820 only)
- 30,000 BTU dual whisper quiet A/C system with heat pump (Mandatory Option)
- 6 Point hydraulic automatic leveling system (Mandatory option)
- Outside entertainment center with 32” HD LED TV (Mandatory option) (N/A 3820)
- Full body paint (Requires Montana Legacy Edition Package)
- (5) Goodyear “G” range tires
- Dual pane frameless windows
- Slideout awnings package
- Generator ready (Onan 5.5 KW specifications)
- Onan Marquis Gold 5.5 KW LP generator
Please see us for a complete list of features and available options.
All standard features and specifications are subject to change.
