Floorplan - 2016 Jayco Eagle 321RSTS
-
-
-
-
-
-
1 of 8
+8-
Sleeps 4
-
3 Slides
-
Rear Living AreaKitchen Island
-
36ft Long
-
10,000 lbs
-
Java, Meadow, Havana, Almond

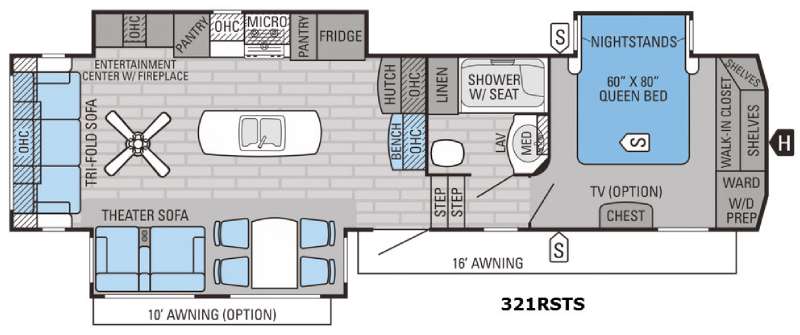

321RSTS Floorplan
321RSTS Floorplan
Specifications
Specifications
| Sleeps | 4 | Slides | 3 |
| Length | 35 ft 10 in | Ext Width | 8 ft |
| Ext Height | 12 ft 9 in | Int Height | 6 ft 6 in |
| Interior Color | Java, Meadow, Havana, Almond | Hitch Weight | 1935 lbs |
| GVWR | 12500 lbs | Dry Weight | 10000 lbs |
| Cargo Capacity | 2500 lbs | Fresh Water Capacity | 75 gals |
| Grey Water Capacity | 87 gals | Black Water Capacity | 50 gals |
| VIN | 1UJCJ0BS7G1WD0140 |
Description
Description
Stepping inside the Eagle 321RSTS fifth wheel you will find that there is a rear living area, ceiling fan, a hutch, kitchen island, plus much much more!
To the left of the entrance there is a slide with a free-standing table with chairs and a theater sofa. Along the rear wall there is a tri-fold sofa with overhead cabinets. A ceiling fan is located in between the sofa and kitchen island.
The other slide in the main living area includes an entertainment center with fireplace, a pantry, microwave, three burner range, another pantry, and a refrigerator. You may choose the optional 12 cu. ft. refrigerator instead. Adjacent to the slide you will see a hutch for storing items, a bench right inside the entry, plus storage above. The double kitchen sink is located in the kitchen island.
At the top of the stairs, on the left side you will come to the bathroom. Inside the bathroom there is a linen cabinet, shower with seat, toilet, sink, and a medicine cabinet.
The front bedroom includes a queen bed slide with storage below, a chest with optional TV, wardrobe with washer/dryer prep, and a walk-in closet with shelves.
Outside of the fifth wheel there is a 16' awning, and a 10' optional awning, plus exterior storage on both sides.
Features
Features
Standard Features (2016)
Fifth Wheels
Customer Value Package (Mandatory)
- Machined aluminum rims
- Rooftop and ground solar prep by Go Power® (an industry first)
- Rear 2-inch accessory receiver
- Linc® wireless remote control system
- 12V AM/FM/CD/DVD/USB 3-zone A/V system with Bluetooth® and HDMI
- 13,500- or 15,000-BTU dual-ducted Whisper Quiet A/C system (a class exclusive)
- Stainless steel microwave with exhaust fan
- Rain-proof EZ Breeze™ 350CFM bathroom power vent (patent pending, a class exclusive)
- Queen pillow-top memory foam Denver Mattress with under-bed storage
- Electric patio awning with integrated LED lights
Exterior Equipment
- I-class cambered, structural steel I-beam frame with box-tube steel upper deck framing
- TuffShell® vacuum-bonded, aluminum-framed, laminated walls (including rear wall and slide room end walls)
- High-gloss, gel-coated ivory Filon® fiberglass exterior
- Magnum Truss™ Roof System (strongest tested roof in the industry) with one-piece, seamless DiFlex II material
- Climate Shield™ zero-degree-tested weather protection:
- Fully enclosed and heated underbelly (ducted)
- High-BTU output furnace
- Double layer fiberglass batt insulation in ceiling and floor
- Double-sided radiant barrier Flexfoil® bubble insulation in roof and slide room floors
- PEX plumbing
- High-gloss, ivory fiberglass front cap with built-in, recessed LED lighting
- Custom automotive-grade 3M® vinyl exterior graphics package
- 16-inch 10-ply, load range ‘E’ steel-belted radial tires
- MOR/ryde® CRE/3000™ rubberized suspension
- Power service with detachable Powersmart™ LED shore power cord (50 amps)
- Cap-integrated, dual 30-pound propane bottles with auto-regulator
- Completely enclosed and protected electric slideout mechanisms
- 3-step, extra-sturdy, anti-slip Alumi-Tread™ entrance steps
- 30-inch x 72-inch entrance door with XL grab handle
- Independent satellite and whole coach cable hookups (a class exclusive)
- Digital TV antenna
- Exterior marine-grade speakers
- Pass-through storage with Slam-latch™ baggage doors
- Battery disconnect
- Water heater bypass
- Black tank flush
- Best-in-class fresh water tank sizes
- Outside shower
- Under-mounted spare tire
- Outside grill prep
- LP quick connect
- Roof ladder
- Triple battery compartment
- Frameless windows
- Heated, enclosed universal docking center
- Outside kitchen (select models)
Interior Equipment
- Handcrafted, “Sugar Maple”-glazed, maple cabinetry and drawers
- Solid, hardwood slide fascia
- 5/8-inch tongue-in-groove joined plywood floor decking
- IVC® Trekk™ "Wood Plank" vinyl flooring (standard minimal carpeting)
- Shaw® residential carpeting with R2X stain guard
- Shaw residential carpet pad with R-value and sound dampening (an industry first)
- LED interior lighting throughout
- Central command center with built-in tank monitoring
- Tri-fold hide-a-bed sofa with Denver Mattress® sleep surface
- Swivel glider recliner(s) (select models)
- Wall-hugger theater seating (select models)
- 50-amp service with dual A/C ducting and second A/C prep
- Directional and closeable A/C vents
- Heavy-duty, 75-pound, full-extension, steel ball-bearing drawer guides
- Stainless steel kitchen sink
- Residential-style pantry storage
- Brushed nickel kitchen faucet with pullout sprayer
- Stainless steel oven and sealed burner stovetop with hardwood knife rack
- 8-cubic-foot gas/electric refrigerator with freezer
- 17.8-gallon-per-hour quick recovery gas/electric DSI water heater
- Dual USB charging ports (kitchen and bedroom)
- 12V charging station
- Pleated window shades
- Hardwood safety handrail on steps
- Bath skylight
- LED vanity and residential-size mirror (an industry exclusive)
- Bathroom stone backsplash
- Residential-style shower with sliding glass door (up to 48 inches)
- Porcelain foot-flush toilet
- Residential quilted bedspread and pillows
- Carbon monoxide and LP detector
- Extra 110V power outlets in kitchen and slide rooms
- Built-in “mud room” bench locker/coat storage (a class exclusive, n/a 293RKDS, 317RLTS, 339FLQS, 345BHTS)
Luxury Package (Mandatory)
- MOR/ryde EZ-Stow toolbox in cargo area (a class exclusive)
- Ground Control™ 4-point electric auto-leveling system with hitch memory
- 39-inch LED HDTV with fully digital HDMI output (46-inch in 339FLQS)
- 110V ceiling fan
- LED fireplace,5,000-BTU electric heater (select models)
- HI-MACS® solid-surface kitchen countertop by LG® with pullout sprayer kitchen faucet and flush-mount sink covers
Options
- Canadian Standards
- Customer Value Package (Mandatory)
- 13,500 BTU "Whisper Quiet" A/C system
- Aluminum rims
- AM/FM/CD/DVD/USB A/V system with Bluetooth® and HDMI®, Denver® Pillowtop Mattress
- Electric patio awning with LED light
- Microwave
- Bathroom power vent
- Ground and Rooftop Solar prep
- Wireless Remote
- Rear 2" Accessory Receiver
- Luxury Package
- 4-Point Electric Auto-Leveling System
- 39” LED HDTV with HDMI®
- LED Fireplace
- HI-MACS® Solid Surface Countertops by LG®
- Frameless Windows
- Washer/Dryer Prep (Not applicable in 291RSTS, 325BHQS, or 339FLQS), MOR/RYDE® EZ-Stow™ toolbox
- 110V Ceiling Fan
- Free-Standing Sugar Maple Table with Leaf and 2 Storage + 2 Folding Chairs
- Party Sofa with Stowable Tables and Hide-A-Bed (325BHQS, 345BHTS, 355MBQS, 360QBOK) in Place of Booth and Theater Seating
- 2nd A/C Ducted in Bedroom 15,000 BTU Air Conditioner
- 12 cu. ft. Refrigerator (291RSTS, 293RKDS, 321RSTS, 323LKTS, 325BHQS, 339FLQS, 355MBQS, 317RLOK)
- 23 cu. ft. Residential Refrigerator w/ 1000W Inverter (291RSTS, 293RKDS, 317RLOK, 321RSTS, 323LKTS, 325BHQS, 339FLQS, 355MBQS)
- Exterior Bumper Mount Grill
- MOR/Ryde® "RPB" Rubber Pin Box
- Reese® Revolution 90° Pin Box
- Sleeper Sofa (325BHQS, 345BHTS, 360QBOK) Replaces J-Cube on 345BHTS and 360QBOK
- 2nd Tri-fold Hide-A-Bed Sofa in Bunk House (345BHTS, 360QBOK)
- 2nd Power Awning (291RSTS, 321RSTS, 323LKTS, 325BHQS, 355MBQS, 317RLOK)
- 24" LED TV (325BHQS, 345BHTS, 355MBQS, 360QBOK) in Bunk House
- 24" LED TV (325BHQS, 345BHTS, 317RLOK) in Outside Kitchen
- 32" LED TV
in Master Bedroom - MAXXIS® M8008 16" Tire Upgrade 4 Tires, Custom Aluminum Wheels, and Spare
- Voyager® Wireless Backup/Rearview Camera and Monitor Kit
- Frameless Dual Pane Tinted Safety Glass Windows
Decor
- Java - Leatherette
- Meadow
- Havana - Leatherette
- Almond - Leatherette
Travel Trailers
Customer Value Package (Mandatory)
- Machined aluminum rims
- Rooftop and ground solar prep by Go Power® (an industry first)
- Linc® wireless remote control system
- 12V AM/FM/CD/DVD/USB 3-zone A/V system with Bluetooth® and HDMI
- 13,500- or 15,000-BTU dual-ducted Whisper Quiet A/C system (a class exclusive)
- Stainless steel microwave with exhaust fan
- Rain-proof EZ Breeze™ 350CFM bathroom power vent (patent pending, a class exclusive)
- Queen pillow-top memory foam Denver Mattress with under-bed storage
- Electric patio awning with integrated LED lights
Exterior Equipment
- I-class cambered, structural steel I-beam frame with box-tube steel upper deck framing
- TuffShell® vacuum-bonded, aluminum-framed, laminated walls (including rear wall and slide room end walls)
- High-gloss, gel-coated ivory Filon® fiberglass exterior
- Magnum Truss™ Roof System (strongest tested roof in the industry) with one-piece, seamless DiFlex II material
- Climate Shield™ zero-degree-tested weather protection:
- Fully enclosed and heated underbelly (ducted)
- High-BTU output furnace
- Double layer fiberglass batt insulation in ceiling and floor
- Double-sided radiant barrier Flexfoil® bubble insulation in roof and slideroom floors
- PEX plumbing
- High-gloss, ivory fiberglass front cap with built-in, recessed LED lighting
- Custom automotive-grade 3M® vinyl exterior graphics package
- 15-inch steel-belted radial tires
- MOR/ryde® CRE/3000™ rubberized suspension
- Power service with detachable Powersmart™ LED shore power cord (30 or 50 amps depending on model)
- Cap-integrated, dual 30-pound propane bottles with auto-regulator
- Completely enclosed and protected electric slideout mechanisms
- Oversized entry step with safety light
- 30-inch x 72-inch entrance door with XL grab handle
- Independent satellite and whole coach cable hookups (a class exclusive)
- Digital TV antenna
- Exterior marine-grade speakers
- Pass-through storage with Slam-latch™ baggage doors
- Battery disconnect
- Dual-battery capacity
- 6-in-1 sidewall-mounted exterior convenience center (a class exclusive)
- Water heater bypass
- Black tank flush
- Best-in-class fresh water tank sizes
- Outside shower
- Under-mounted spare tire
- Outside grill prep
- LP quick connect
- Roof ladder
- Front and rear electric stabilizer jacks
- Electric tongue jack
- Frameless windows
- Heated, enclosed universal docking center
- Outside kitchen (select models)
Interior Equipment
- Handcrafted, “Sugar Maple”-glazed, maple cabinetry and drawers
- Solid, hardwood slide fascia
- 5/8-inch tongue-in-groove joined plywood floor decking
- IVC® Trekk™ "Wood Plank" vinyl flooring (standard minimal carpeting)
- Shaw® residential carpeting with R2X stain guard
- Shaw residential carpet pad with R-value and sound dampening (an industry first)
- LED interior lighting throughout
- Central command center with built-in tank monitoring
- Tri-fold hide-a-bed sofa with Denver Mattress® sleep surface
- Swivel glider recliner(s) (select models)
- 32-inch LED HDTV with fully digital HDMI® output (a class exclusive)
- 39-inch LED HDTV with fully digital HDMI output
- 50-amp service with dual A/C ducting and second A/C prep (standard on select models, optional on others)
- Directional and closeable A/C vents
- LED fireplace,5,000-BTU electric heater (select models)
- Heavy-duty, 75-pound, full-extension, steel ball-bearing drawer guides
- Stainless steel kitchen sink
- HI-MACS® solid-surface kitchen countertop by LG® with pullout sprayer kitchen faucet and flush-mount sink covers (standard on select models, optional on others)
- Stainless steel oven and sealed burner stovetop with hardwood knife rack
- 8-cubic-foot gas/electric refrigerator with freezer
- 17.8-gallon-per-hour quick recovery gas/electric DSI water heater
- Dual USB charging ports (kitchen and bedroom)
- 12V charging station
- Pleated window shades
- Radius door XL shower with ABS tile-look tub surround (select models)
- Bath skylight
- LED vanity and residential-size mirror (an industry exclusive)
- Bathroom stone backsplash
- Porcelain foot-flush toilet
- Residential quilted bedspread and pillows
- Carbon monoxide and LP detector
- Extra 110V power outlets in kitchen and slide rooms
- Canadian Standards
- Customer Value Package (Mandatory)
- 13,500 BTU "Whisper Quiet" A/C system
- Aluminum rims
- AM/FM/CD/DVD/USB A/V system with Bluetooth® and HDMI®, Denver® Pillowtop Mattress
- Electric patio awning with LED light
- Microwave
- Bathroom power vent
- Frameless Windows
- Solar Prep
- Wireless Remote
- Customer Value Package w/ 15,000 BTU "Whisper Quiet" A/C
- Free-Standing Sugar Maple Table with Leaf and 2 Storage + 2 Folding Chairs
- Party Sofa with Stowable Tables and Hide-A-Bed (324BHTS)
(in place of booth and hide-a-bed sofa) - 50 Amp Service w/2nd A/C Prep
- 2nd A/C Ducted in Bedroom (requires 50 amp service; 15,000 BTU)
- LG® Solid Surface Countertop in Kitchen
- King-Sized Denver Mattress® (330RSTS, 336FKDS, 338RETS)
- 2nd Tri-Fold Hide-A-Bed Sofa (306RKDS, 318RETS, 338RETS)
- Rolling Island Pantry (338RETS)
- Exterior Bumper Mount Grill
- Bike Rack/Cargo Tray System
- 24" LED TV (314BHDS, 314TSBH, 324BHTS) in Bunk House
- 24" LED TV (314BHDS, 314TSBH, 324BHTS) in Outside Kitchen
- 32" LED TV (318RETS, 330RSTS, 336FKDS, 338RETS) in Master Bedroom
- MAXXIS® M8008 16" Tire Upgrade 4 Tires, Custom Aluminum Wheels , and Spare
- Voyager® Wireless Backup/Rearview Camera and Monitor Kit
- Frameless Dual Pane Tinted Safety Glass Windows
- Sway Command Electronic Sway Control
Decor
- Java - Leatherette
- Meadow
- Havana - Leatherette
- Almond - Leatherette
See us for a complete list of features and available options!
All features and specifications are subject to change.
Favorite RVs
Save your favorite RVs as you browse. Begin with this one!
What Other Customers Are Saying
We are here to help!
Loading
Markquart RV Burlington is not responsible for any misprints, typos, or errors found in our website pages. Any price listed excludes taxes, license, title/Registration fees, insurance, and $499.50 dealer fee. Manufacturer pictures, specifications, and features may be used in place of actual units on our lot. Please contact us @262-539-3600 for availability as our inventory changes rapidly. All calculated payments are an estimate only and do not constitute a commitment that financing or a specific interest rate or term is available.
