Used 2015 CrossRoads RV Cruiser Aire CAF29RS

Fifth Wheel

Stock #MAD3032A

Madison, WI

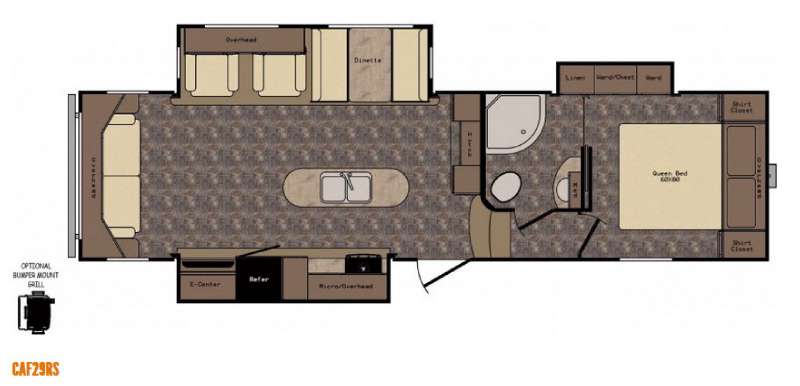

Floorplan - 2015 CrossRoads RV Cruiser Aire CAF29RS

1 of 25

+25

Our Price: $15,995

Sleeps 5
3 Slides
Rear Living Area

Kitchen Island

33ft Long
8,987 lbs

See All Specs

Specifications

Sleeps	5	Slides	3
Length	32 ft 11 in	Ext Height	11 ft 10 in
Exterior Color	Tan	Hitch Weight	1828 lbs
GVWR	11988 lbs	Dry Weight	8987 lbs
Cargo Capacity	3001 lbs	Fresh Water Capacity	40 gals
Grey Water Capacity	40 gals	Black Water Capacity	40 gals
Tire Size	225/75R15D	Furnace BTU	35000 btu
VIN	4V0FC2928FG006524

Features

Standard Features (2015)

Exterior

High gloss laminated sidewalls
5-sided aluma frame construction
Aerodynamic front cap with LED accent lights
One-piece seamless rubber roof covering
Radius roof line
Domed roof line (front to back - TT)
Total Truss roof system
30"x72" main entry door
Lighted triple entry step
Extendable grab handle at main entry
EZ lube axles
Trail Air Equa-Flex suspension
Nitrogen filled radial tires
Galavanized wheel well
Outside kitchen (VBM)
Super-stor pass through basement storage (FW)
Metal slam latch pass through baggage doors
Manual slide override extends through frame for easy access
Dura-Cam I beam frame
Exterior marine grade speakers (2)
LP cover (TT)
Battery disconnect (FW)
ABS enclosed underbelly
Forced heat to underbelly
Black tank flush
Quick recovery 6 gal G/E DSI water heater (17.8 gal/hr)
Outside shower
30 amp detachable power service
Cable/SAT prep
Digital TV antenna
Stabilizer jacks
Outside grill prep
Roof ladder

Interior

Lumber core screwed stile cabinetry construction
LED lights through out interior
Raised panel cabinetry
70lb steel ball bearing guides, full extension
Solid wood drawer construction
Hardwood mullion style fridge front
Decorative dinette light
40" booth dinette (VBM)
U-dinette with snap up table (VBM)
Plywood dinette base
Self igniting 22" oven with 3-burner cook top
Range cover
Knife rack
Adjustable pantry shelving
High definition laminate countertops
High rise kitchen faucet
Stainless steel kitchen sink with cover
Charging station
Maximum lino
Tri-fold hide a bed sofa
Swivel rocker chairs (VBM)
Slideout sidewall light (VBM)
OHC above sofa / chairs in slideout
Decorative slide fascias
Water heater by-pass kit
EZ winterization kit
Backlit command center for switches
65 amp converter with distribution center
12-volt bath power vent
Bath skylight
Built medicine cabinet
Glass tub / shower enclosure
Deluxe bedding package
Full trunk under bed storage
Plywood bed base with strut assist
Spacious bedroom closets
Fire extinguisher
LP/CO2 detector
Smoke detector

Select Package: Mandatory

8 cu ft refer
12-volt multi-media sound system w/Bluetooth
Black Label furniture
Deluxe soft pull roller shades
Dark tinted safety glass windows
Glazed maple cabinetry
Dual 30# LP tanks w/auto changeover
Porcelain toilet with foot flush
32" TV in living area
Microwave
35,000 BTU furnace
15k ducted air system with quick cool
Spare tire
Thermotec insulation package
Aluminum rims
Vetro high gloss sidewalls
Electric awning with LED light
Correct track alignment system
i-Cool mattress (60"x80")
Rear hitch receiver
Electric rear jacks (FW)
Electric tongue jack (TT)
Electric stab jacks (TT)

Thermotec Components:

Sidewall - Block Foam Insulation + Double Layer Lauan
Roof - Wood Rafters + R-7 Spun Insulation + R-15 Astrofoil
Floor System - R-7 Spun Insulation + R-15 Astrofoil + ABS Enclosure
Front Wall - R-7 Spun Insulation + R-15 Astrofoil
Rear Wall - R-7 Spun Insulation + R-15 Astrofoil
Slide Floor - R-15 Astrofoil Insulation
Slide End Walls - R-7 Spun Insulation + R-15 Astrofoil
Slide Roof - R-7 Spun Insulation + R-15 Astrofoil
Bedroom Deck - R-7 Spun Insulation + R-15 Astrofoil
Above Open Pin Box - R-15 Astrofoil
Underbelly - Forced Heat to Tanks
Furnace - 35,000 BTU (Largest in its class)

Total Truss Roof System:

50% stronger than competitive roof designs
4 1/2" crowned wood truss 16" O.C.
2" x 2" vertical wood stud supports to maximize load capacity
Oversized nail plates for greater stability
3/8" plywood roof decking (secured in place with screws)
Fully walkable

Construction:

Roof:

One piece seamless rubber roofing material with 12 year warranty
3/8" plywood roof decking (screwed in place)
R-7 spun insulation + R-15 Astrofoil
16" O.C. total truss roof system

Sidewall:

2" laminated aluminum superstructure
White high gloss exterior
Block foam insulation
Double layer lauan paneling

Front Wall:

2" aluminum framed superstructure 16" O.C.
R-7 spun insulation + R-15 astrofoil
Vetro high gloss exterior

Rear Wall:

2" aluminum framed superstructure 16" O.C.
R-7 spun insulation + R-15 astrofoil
Vetro high gloss exterior

Slide End Wall:

2" aluminum framed superstructure 16" O.C.
R-7 spun insulation + R-15 Astrofoil
Vetro high gloss exterior

Slide Sidewall:

2 laminated aluminum superstructure
Vetro high gloss exterior
Block foam insulation
Double layer lauan paneling

Slide Roof:

2" aluminum framed superstructure 16" O.C.
R-7 spun insulation + R-15 astrofoil
One piece seamless rubber roofing material with 12 year warranty

Slide Floor:

5/8" beveled floor decking
R-15 astrofoil insulation
Darco seamless underbelly

Floor System:

Seamless ABS enclosure
Dura-Cam I beam frame
Darco seamless underbelly
Duct openings for forced heat
2" aluminum framed superstructure 16" O.C.
R-7 spun insulation + R-15 astrofoil
5/8" tongue and groove plywood floor decking (screwed in place)

Options

Bumper mount grill
Insulated windows
50 amp service with 2nd A/C prep
2nd A/C (low-profile 13.5) requires 50amp with 2nd A/C prep
Recliners ILO swivel rockers (VBM)
Free standing table and chairs
Solid surface counter tops

See us for a complete list of features and available options.

All features and specifications are subject to change.
